This article explains how a peristaltic pump moves fluid through progressive tube compression and covers its components, performance factors, advantages, limitations, applications, selection criteria, and maintenance.

What Is a Peristaltic Pump and How Does It Work?

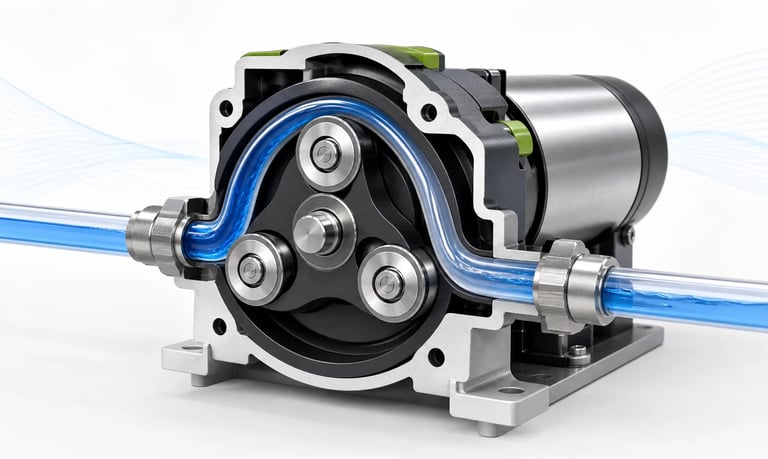

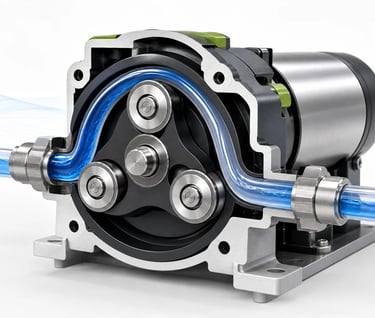

A peristaltic pump is a positive-displacement pump that moves fluid by repeatedly compressing flexible tubing. Rollers mounted inside the pump head press the tube against a curved track. As the rotor turns, the compression point moves forward and pushes the fluid toward the outlet.

The liquid remains inside the tubing throughout the process. It does not contact the rollers, rotor, or pump-head housing. This isolated fluid path is one of the main reasons peristaltic pumps are used for dosing, sampling, laboratory transfer, reagent handling, beverage dispensing, and OEM fluid-control systems.

The working principle is simple, but actual performance depends on the complete pump and fluid system. Tubing material, tube dimensions, motor speed, roller design, viscosity, inlet conditions, and back pressure all affect flow, repeatability, and tubing life.

How Does a Peristaltic Pump Work Step by Step?

The name peristaltic refers to a progressive squeezing action. The pump creates this action mechanically through a rotating set of rollers.

1. A Roller Compresses the Tube

As a roller enters the pumping section, it presses the flexible tube against the pump-head track. The tube is compressed enough to restrict reverse flow through that point. This compression is often described as occlusion.

Correct occlusion is important. If compression is insufficient, fluid may slip backward or siphon through the tube. If compression is excessive, tube stress, motor load, heat, and wear may increase.

2. The Compression Point Moves Forward

The rotor carries the roller along the curved track. Fluid trapped ahead of the roller is pushed toward the outlet. The amount moved during each rotation depends mainly on the tube dimensions, the effective compression path, and the pump-head geometry.

3. The Tube Recovers Behind the Roller

After the roller moves away, the tubing attempts to return to its original shape. This recovery increases the volume inside the tube and creates suction that draws more fluid into the inlet side.

Tube elasticity therefore affects both suction and flow. A tube that has softened, hardened, swollen, or lost its ability to recover may produce less stable performance.

4. Successive Rollers Maintain the Pumping Cycle

Additional rollers repeat the compression and recovery process. The number, spacing, and geometry of the rollers influence the size and frequency of flow pulses.

The result is a controlled forward movement of fluid without an internal valve or a pump chamber exposed to the medium.

Main Components of a Peristaltic Pump

A compact peristaltic pump usually includes the following components.

Flexible Pump Tubing

The tubing is both the fluid path and the pumping element. It must flex repeatedly, recover after compression, and remain compatible with the fluid.

Important tube properties include:

• Inner diameter

• Outer diameter

• Wall thickness

• Material

• Hardness and elasticity

• Chemical compatibility

• Fatigue resistance

• Temperature capability

Tubing is a consumable component. Its service life depends on speed, pressure, compression, material, temperature, chemical exposure, and duty cycle. It should be tested under the intended application conditions.

Pump Head and Track

The pump head holds the tube in the correct position and provides the surface against which the rollers compress it. Track dimensions and tube loading affect occlusion, suction, pressure capability, and tube wear.

Some pump heads are designed for fast tube replacement, while others use a more enclosed structure for compact OEM integration.

Rotor and Rollers

The rotor converts motor rotation into the progressive squeezing motion. Roller diameter, count, spacing, alignment, and surface condition influence pulsation and tube stress.

More rollers can reduce the volume change between compression events in some designs, but they may also increase the number of tube compression cycles per revolution. Pump-head design must balance flow smoothness, load, and tube life.

Motor and Drive System

Peristaltic pumps may use brushed DC motors, brushless DC motors, stepper motors, or other drive systems. The motor affects speed range, control, noise, torque, repeatability, service life, and cost.

The drive may support simple on-off operation, fixed speed, PWM control, an analog input, direction control, or digital communication. The required control method should be defined during equipment design.

What Determines Peristaltic Pump Flow Rate?

Flow rate is often associated with motor speed, but speed is only one factor.

Tubing Size

A larger tube inner diameter generally moves more fluid per revolution. Wall thickness and outer diameter must also match the pump head so the tube can be loaded and compressed correctly.

Using an unapproved tube size may cause poor occlusion, excessive wear, reduced suction, unstable flow, or high motor load.

Motor Speed

Within the pump's intended operating range, increasing rotational speed generally increases flow. The relationship may not remain perfectly linear under all conditions because tube recovery, fluid viscosity, suction losses, and discharge pressure can become more significant at higher speeds.

Fluid Viscosity

Viscous fluids resist movement and can increase inlet and outlet losses. If the tube does not refill completely before the next compression event, actual flow may fall below the value measured with water.

Larger tubing, lower speed, shorter inlet lines, or other system changes may help, but the final configuration should be tested with the actual fluid.

Back Pressure

Filters, valves, nozzles, narrow tubing, elevation changes, and downstream restrictions create back pressure. Higher back pressure can reduce delivered flow, increase tube stress, and affect dosing repeatability.

Pressure capability depends on the tube, pump-head structure, occlusion, motor torque, speed, and operating conditions. It should be confirmed for the selected model and fluid path.

Tubing Condition

Repeated compression gradually changes tube properties. Wear, permanent deformation, chemical swelling, hardening, or temperature effects may alter the volume delivered per revolution.

Applications requiring repeatable dosing should include a calibration and tube-replacement plan.

What Are the Advantages of a Peristaltic Pump?

Peristaltic pumps offer a useful combination of fluid isolation and mechanical simplicity.

Isolated Fluid Path

The medium contacts only the tubing and any external connectors. This can reduce the number of wetted materials and simplify fluid-path replacement.

The design is useful for sensitive samples, reagents, additives, and fluids that should not contact an internal pump chamber. It does not, however, guarantee sterility or universal compatibility. Those properties depend on the tube, connectors, assembly process, and final system.

Easy Fluid-Path Maintenance

In many pump-head designs, replacing the tubing renews the primary wetted and pumping component. This can make maintenance more straightforward than dismantling a chamber, diaphragm, and valve assembly.

Equipment designers still need to provide enough access for safe and repeatable tube replacement.

Self-Priming Capability

Tube recovery creates suction, allowing many peristaltic pumps to draw fluid into an initially empty line. Actual priming performance depends on tube elasticity, pump condition, suction height, inlet restrictions, fluid properties, and speed.

Reversible Flow

Changing the direction of motor rotation usually reverses the fluid direction. This can support filling, draining, purging, or fluid recovery when the rest of the system is designed for bidirectional operation.

Dry-Running Tolerance

Because there is no internal wetted bearing or valve that relies on the pumped liquid for lubrication, many peristaltic pumps can run with an empty tube for a period. Dry operation still produces tube compression cycles and may generate heat or wear, so acceptable dry-running duration should be confirmed for the pump and application.

Useful Dosing Control

Flow can be adjusted through motor speed, run time, tube size, or a combination of these factors. Stepper-driven or feedback-controlled systems can support repeatable dosing, but final accuracy requires calibration under actual system conditions.

What Are the Limitations of a Peristaltic Pump?

No pump technology is suitable for every application. Common limitations include the following.

Tubing Is a Wear Part

The tube is repeatedly compressed and must be inspected and replaced at an appropriate interval. Tube life cannot be predicted from material name alone. Speed, back pressure, occlusion, temperature, chemical exposure, roller geometry, and duty cycle all contribute.

Flow Pulsation

Each roller produces a compression and release event, so the outlet flow is naturally pulsating. More rollers, lower speed, multiple pump channels, flexible outlet lines, or a pulsation damper may improve flow smoothness, depending on the application.

Limited Pressure in Many Small Designs

Compact peristaltic pumps are often intended for low or moderate pressure conditions. Excessive back pressure can cause reduced flow, tube movement, leakage, premature wear, or motor overload.

Flow Changes Over Time

Tube fatigue and environmental conditions can change delivered volume. Precision systems may need initial calibration, periodic verification, and recalibration after tube replacement.

Material Compatibility Still Matters

Fluid isolation does not eliminate compatibility requirements. The tube may swell, soften, harden, crack, or allow permeation when exposed to an unsuitable chemical. Compatibility should be verified using the actual concentration, temperature, pressure, and exposure time.

Where Are Peristaltic Pumps Used?

Peristaltic pumps are used in systems that benefit from an isolated, replaceable fluid path or controlled low-flow transfer.

Laboratory and Analytical Instruments

Typical functions include reagent addition, sample transfer, circulation, drainage, and washing. Tube replacement can help simplify maintenance when instruments handle multiple fluids.

IVD Equipment

Peristaltic pumps may transfer reagents, cleaning solutions, or waste in diagnostic instruments. Suitability depends on the complete instrument design, accuracy requirements, contamination-control strategy, and applicable regulations. Use in IVD equipment does not automatically indicate a particular medical approval.

Water Quality Sampling and Environmental Monitoring

A peristaltic pump can draw water samples, dose reagents, or move cleaning liquids while keeping the sample inside the tube. Field conditions, particles, suction height, temperature, and maintenance intervals should be included in validation.

Food and Beverage Equipment

Common uses include dosing syrup, flavor, concentrate, or cleaning solution. Tubing and connectors must be evaluated for the specific ingredient, cleaning process, and applicable compliance requirements.

Chemical Dosing

Because the fluid contacts only the tube, changing tube material may allow the same pump concept to work with different chemicals. This does not make the pump universally chemical resistant. Compatibility and tube life require application testing.

OEM Dispensing and Automation

Peristaltic pumps can be built into automated dispensers, cleaning systems, sampling devices, and compact industrial equipment. Mounting, control interface, noise, vibration, tube access, and expected duty cycle should be considered early in the product design.

How to Select a Peristaltic Pump

Prepare a clear application brief before comparing pump models. Include:

• Fluid name, concentration, temperature, and viscosity

• Required minimum, typical, and maximum flow or dose

• Inlet suction and outlet back-pressure conditions

• Tubing material and dimensional requirements

• Continuous or intermittent duty cycle

• Required dosing tolerance and calibration method

• Power supply and control interface

• Installation space and mounting orientation

• Noise and vibration limits

• Tube-replacement access and maintenance interval

• Expected project quantity and customization needs

Test the selected pump with the real fluid path whenever possible. The evaluation should include the actual tube length, connectors, filters, valves, height differences, control signals, and enclosure mounting.

Peristaltic Pump Maintenance Basics

The tubing deserves the most attention during routine maintenance.

• Inspect it for flattening, cracks, swelling, hardening, discoloration, or leakage.

• Keep the tube correctly positioned in the pump head.

• Use the specified tube dimensions and loading procedure.

• Check rollers and tracks for contamination, damage, or uneven movement.

• Verify flow after installing a new tube.

• Record run time, speed, pressure, medium, and replacement history.

• Replace tubing before a predictable wear point becomes a leak risk.

A preventive replacement schedule should be based on tests in the real application rather than a general lifetime estimate.

Frequently Asked Questions

Is a peristaltic pump a positive-displacement pump?

Yes. It moves discrete volumes by trapping fluid between compression points and advancing those volumes through the tube. Actual delivery per revolution can vary with tube condition, pressure, fluid properties, and pump-head geometry.

Does the fluid touch the pump mechanism?

No. In a standard peristaltic design, the fluid remains inside the tubing. It may also contact external fittings, reservoirs, sensors, or valves elsewhere in the system.

Can a peristaltic pump provide accurate dosing?

It can support repeatable dosing when the pump, tubing, motor control, and fluid path are properly selected and calibrated. Accuracy may change with tube wear, viscosity, back pressure, temperature, and operating speed.

Can a peristaltic pump run continuously?

Some models are suitable for longer duty cycles, while others are designed mainly for intermittent use. Continuous-operation suitability depends on the motor, tube, speed, load, heat, and required maintenance interval.

Can any flexible tube be used in a peristaltic pump?

No. The tube must have the correct material, dimensions, hardness, elasticity, and fatigue resistance for the pump head and fluid. An incorrect tube may cause poor occlusion, unstable flow, high motor load, or premature failure.

Why does a peristaltic pump produce pulsating flow?

Pulsation results from successive rollers compressing and releasing the tube. Roller count, tube elasticity, speed, pump-head geometry, outlet tubing, and downstream components influence the pulse pattern.

Kamoer Peristaltic Pump Solutions

The peristaltic working principle makes these pumps useful when an isolated fluid path, replaceable tubing, self-priming, reversible flow, or controlled dosing is important. Successful integration still requires the correct combination of pump head, tube, motor, controller, and system layout.

Kamoer develops micro peristaltic pumps, laboratory peristaltic pumps, diaphragm pumps, and customized OEM fluid-transfer solutions. Kamoer can help evaluate flow requirements, fluid compatibility, tubing, back pressure, duty cycle, control method, mounting, and maintenance needs for a new application.

Looking for a peristaltic pump for an OEM system? Share the medium, required flow, pressure conditions, control method, and installation requirements with Kamoer for a pump-selection review.
