What Is a Micro Pump and Where Is It Used

MICRO PUMP BASICS

10/25/20228 min read

A micro pump is a compact device designed to move, dose, circulate, sample, pressurize, or evacuate a small amount of liquid or gas. Unlike a large process pump, it is usually integrated into an instrument, appliance, or automated system where installation space, power consumption, control, noise, and repeatability can matter as much as maximum flow.

What Is a Micro Pump and Where Is It Used?

Micro pumps are used in applications ranging from reagent handling and water sampling to beverage dispensing, vacuum generation, and smart appliances. However, the term micro pump describes a size and application class rather than one specific pumping technology. A micro pump may use peristaltic rollers, a diaphragm and valves, a piston, a gear set, or another mechanism.

Understanding these differences is the first step toward selecting a suitable pump for an OEM system.

How Does a Micro Pump Work?

Every pump creates a pressure difference that causes a fluid to move from an inlet toward an outlet. The way it creates that pressure difference depends on its pumping mechanism.

Some micro pumps displace a defined volume during each cycle. A diaphragm pump, for example, changes the volume of a chamber while valves control the direction of flow. Other pumps act on a flexible tube. In a peristaltic pump, rotating rollers compress the tube and push the fluid forward without allowing it to contact the mechanical parts of the pump head.

The complete pump assembly may include:

A motor or actuator
A pump head or pumping chamber
Tubing, valves, or other wetted components
Inlet and outlet connections
A drive circuit or external controller
Sensors or feedback components in more advanced systems

Actual flow is not determined by the pump alone. Tubing dimensions, fluid viscosity, inlet conditions, back pressure, supply voltage, motor speed, temperature, and system layout can all influence performance.

Main Types of Micro Pumps

Different pump technologies solve different fluid-control problems. The following types are common in compact equipment.

Micro Peristaltic Pumps

A micro peristaltic pump uses rollers to repeatedly compress flexible tubing. As the rollers move along the tube, they push trapped fluid toward the outlet.

The fluid contacts only the tubing, which can simplify fluid-path cleaning and material selection. Tubing can also be replaced without opening an internal pump chamber. These characteristics make peristaltic pumps useful for reagent dosing, sampling, dispensing, and applications where fluid isolation is important.

Their limitations must also be considered. Tubing is a consumable component, flow may pulsate, and performance changes with tube dimensions, material, wear, speed, and back pressure. Tubing compatibility should be verified using the actual medium, concentration, temperature, and exposure conditions.

Micro Diaphragm Liquid Pumps

A diaphragm liquid pump uses the reciprocating movement of a flexible diaphragm to increase and decrease the volume of a chamber. Inlet and outlet valves direct the liquid through the pump.

This design can provide compact liquid transfer without using an external tube as the pumping element. It is often integrated into analyzers, cleaning equipment, dispensing systems, and other OEM products.

Because the liquid contacts the diaphragm, valves, chamber, seals, and connectors, all wetted materials need to be evaluated. Particles, crystallization, trapped gas, and unsuitable viscosity may also affect valve operation or flow stability.

Micro Diaphragm Gas Pumps

Diaphragm gas pumps use a similar chamber principle but are designed for air or other gases. Depending on their configuration and operating point, they can create vacuum, pressure, or gas flow.

Typical functions include drawing a gas sample through an analyzer, generating suction, moving air through a sensor path, or supplying pressure to a compact system. A gas pump should not be assumed suitable for unrestricted liquid transfer unless the pump specification explicitly supports it.

Other Miniature Pump Technologies

Some applications use miniature piston, gear, piezoelectric, syringe, or rotary pumps. Each technology has a different balance of flow, pressure, precision, fluid compatibility, service life, cost, and control complexity.

The smallest pump is not automatically the best choice. The correct technology is the one that meets the complete operating requirement with an acceptable maintenance and integration plan.

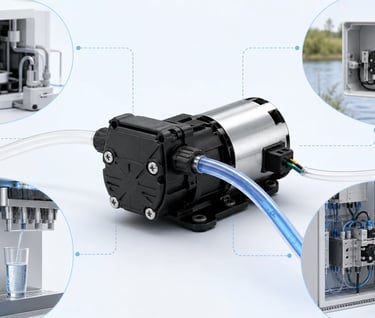

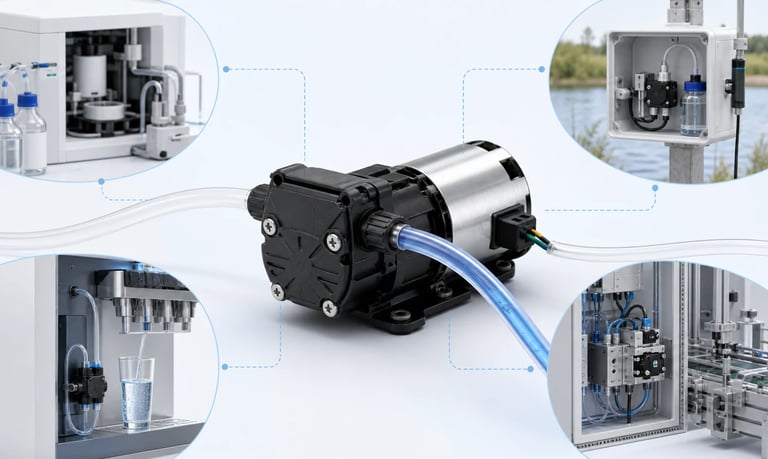

Where Are Micro Pumps Used?

Micro pumps are valuable wherever a device needs controlled fluid movement in a limited space.

IVD and Laboratory Instruments

Diagnostic and laboratory instruments may use micro pumps to transfer samples, dispense reagents, rinse fluid paths, remove waste, circulate liquids, or generate vacuum. Peristaltic pumps are often considered when the fluid should remain isolated inside replaceable tubing. Diaphragm liquid or gas pumps may be selected when the instrument needs a compact transfer, aspiration, or pneumatic function.

Selection for an IVD or laboratory system still depends on the instrument's accuracy, contamination-control, maintenance, and regulatory requirements. Use in such equipment does not by itself mean that a pump has a particular medical certification.

Environmental Monitoring and Water Sampling

Water-quality and environmental instruments use pumps for sample collection, reagent addition, drainage, gas sampling, and fluid-path cleaning. A field system may need to tolerate changing temperatures, long inlet lines, intermittent operation, or extended maintenance intervals.

The designer should evaluate suction conditions, line losses, sample characteristics, weather exposure, and the possibility of particles or sediment. Test results from a short clean-water trial may not represent long-term field performance.

Food and Beverage Equipment

In beverage dispensers and automated food equipment, a micro pump may dose syrup, concentrate, flavor, water, cleaning fluid, or another ingredient. The pump must fit the required dispensing cycle while allowing suitable cleaning and service access.

Wetted materials and tubing should be assessed against the actual ingredient and cleaning process. Food-contact or regulatory claims must be confirmed for the specific materials and final application rather than inferred from the pump category.

Smart Appliances and Cleaning Equipment

Micro pumps can supply water, detergent, fragrance, air, or vacuum in compact appliances. Common design priorities include low noise, limited power, small dimensions, simple control, and resistance to repeated start-stop cycles.

Installation details are especially important in consumer-facing equipment. Poor tubing routing, rigid mounting, or operation near an unsuitable resonance can make an otherwise acceptable pump sound louder in the finished product.

Industrial Dosing and Automation

Automated equipment may use micro pumps to meter additives, transfer process liquids, lubricate components, circulate fluids, or supply pneumatic functions. These systems often require coordination with valves, sensors, controllers, and safety logic.

For repeatable dosing, the complete system should be calibrated under the intended viscosity, temperature, tubing configuration, and discharge pressure. A nominal flow value should not be treated as a guaranteed dose under every condition.

Gas Sampling, Vacuum, and Pressure Systems

Compact gas analyzers, leak-detection equipment, fragrance systems, and sensor modules may use a diaphragm gas pump to draw or push air through a controlled path. Filters, tubing length, restrictions, altitude, and leaks can change the operating point.

Pump selection should therefore use the required flow at the actual vacuum or pressure, not only a free-flow figure.

What Are the Benefits of a Micro Pump?

When correctly selected, a micro pump can offer several system-level advantages:

Compact integration inside an instrument or appliance
Automated transfer, dosing, sampling, vacuum, or pressure functions
Electrical speed or on-off control
Multiple fluid-path options for liquids and gases
Lower fluid volume in small analytical or dosing systems
Easier modular replacement in some designs
Customization opportunities for tubing, connectors, mounting, motors, and control interfaces

These benefits depend on the pump technology and implementation. For example, a peristaltic pump can provide an isolated fluid path, but its tube requires planned replacement. A diaphragm pump can be compact, but every wetted component must be compatible with the medium.

How Do You Select the Right Micro Pump?

Start with the application rather than a pump model. A useful selection brief should answer the following questions.

1. Is the Medium a Liquid or a Gas?

Identify the exact medium, including concentration, temperature, viscosity, solids, volatility, and cleaning chemicals. For gas applications, define gas composition and whether the system needs flow, vacuum, pressure, or a combination.

2. What Flow Is Required?

Record the minimum, typical, and maximum flow or dose. State whether the requirement is continuous flow, a dose per cycle, or evacuation within a specified time. Include the acceptable tolerance and calibration method.

3. What Are the Inlet and Outlet Conditions?

Consider suction height, supply pressure, discharge back pressure, tubing diameter, filters, check valves, nozzles, and elevation changes. These components determine the real operating point.

4. Which Materials Contact the Fluid?

For a peristaltic pump, focus on the tube and connectors. For a diaphragm liquid pump, review the diaphragm, valves, chamber, seals, and fittings. Compatibility should be verified under the actual concentration, temperature, pressure, and exposure time.

5. What Is the Duty Cycle?

Specify continuous or intermittent use, run time per cycle, cycles per day, expected equipment life, and maintenance access. Heat, tube fatigue, valve wear, and motor life can vary significantly with duty cycle.

6. How Will the Equipment Control the Pump?

The system may require simple on-off operation, fixed speed, PWM, an analog command, direction control, communication, or closed-loop feedback. Electrical supply, driver design, electromagnetic compatibility, and fault handling should be reviewed early.

7. What Are the Mechanical Constraints?

Confirm dimensions, orientation, mounting points, connector direction, cable routing, noise, vibration, heat dissipation, and service access. Testing the pump inside the final enclosure is more useful than evaluating it only on an open bench.

Common Micro Pump Selection Mistakes

Avoid these common errors:

Choosing only from the maximum or free-flow specification
Ignoring inlet vacuum, outlet pressure, filters, and narrow tubing
Assuming chemically similar fluids behave the same
Treating tubing or seals as lifetime components
Overlooking viscosity and temperature changes
Selecting a liquid pump for gas duty, or a gas pump for liquid duty, without confirmation
Expecting nominal flow to equal dosing accuracy without calibration
Evaluating noise and vibration outside the final enclosure
Using food, medical, or regulatory claims without supporting documentation

Early application testing reduces these risks. The test should reproduce the intended medium, fluid path, power supply, control method, mounting, and duty cycle as closely as practical.

Frequently Asked Questions

Is a micro pump the same as a dosing pump?

Not necessarily. A micro pump describes a compact pump, while a dosing pump describes a function. A micro pump can be used for dosing, but it may also transfer, circulate, sample, pressurize, or evacuate fluid. Dosing performance depends on pump technology, control, calibration, and system conditions.

Can a micro pump move both liquids and gases?

Some technologies have liquid and gas variants, but one model should not be assumed suitable for both. The pump must be selected for the intended medium and operating conditions.

Are micro pumps suitable for continuous operation?

Some are designed for longer duty cycles, while others are better suited to intermittent operation. Suitability depends on the motor, pump head, load, temperature, mounting, and expected service interval. Confirm continuous-duty requirements with the manufacturer and validate them in the application.

How accurate is a micro pump?

Accuracy varies by pump type and system design. Tubing dimensions, motor control, viscosity, back pressure, calibration, valve behavior, temperature, and wear can all affect the delivered volume. Precision applications usually require system-level calibration and verification.

Can a micro pump handle corrosive chemicals?

It may be possible when all wetted materials are compatible, but there is no universal chemical-resistant pump. Compatibility must be checked for the exact chemical, concentration, temperature, pressure, and exposure time, followed by application testing.

What information should I provide when requesting a pump recommendation?

Provide the medium, required flow or dose, inlet and outlet pressure conditions, temperature, viscosity, duty cycle, control method, available space, tubing or connector requirements, target quantity, and any applicable compliance requirements.

Choosing a Micro Pump for an OEM Project

A micro pump is a small component with a large influence on fluid-system performance. Reliable selection requires more than matching a headline flow value: the pump, medium, tubing, restrictions, controller, enclosure, and maintenance plan must work together.

Kamoer develops micro peristaltic pumps, diaphragm liquid pumps, diaphragm gas pumps, laboratory pumps, and OEM fluid-transfer solutions. For a new project, Kamoer can help evaluate the medium, target flow, pressure conditions, control method, installation space, and customization requirements before final model testing.

Looking for a micro pump for an OEM system? Share your application and operating conditions with Kamoer to begin a pump-selection review.
