Pumps for Inkjet and Coding Machines

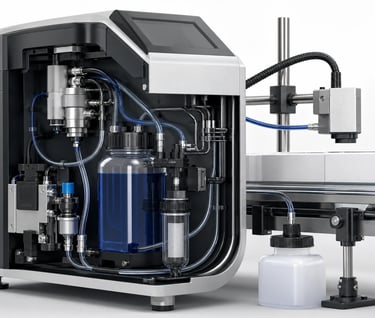

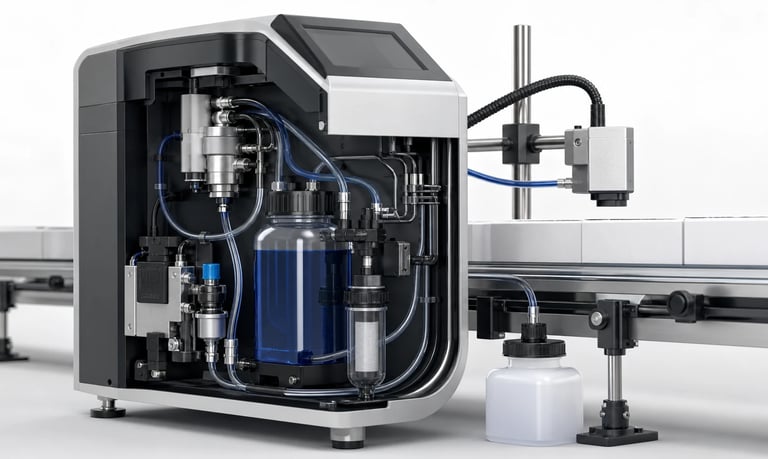

Industrial inkjet and coding machines use compact pumps to supply ink, circulate fluid, add makeup solvent, prime printheads, purge lines, create vacuum, and transfer waste. Pump behavior can influence jet stability, print consistency, startup time, air ingestion, sediment control, leakage risk, and maintenance.

The right inkjet printer pump depends on the printing technology and fluid system. A continuous inkjet machine, drop-on-demand printer, large-format system, and coding unit may require very different flow, pressure, vacuum, materials, and control. Selection should therefore be based on the complete fluid circuit and verified with the actual ink and cleaning fluids.

Define Every Pump Function

Map each fluid-handling operation before selecting pump hardware:

• Transfer ink from a cartridge or bulk reservoir

• Supply a printhead or intermediate tank

• Circulate pigmented ink to limit settling

• Meter makeup fluid or solvent

• Prime tubing and printhead channels

• Purge air or contaminated ink

• Recover gutter fluid in a continuous inkjet system

• Generate vacuum for meniscus or leak control

• Flush the circuit during cleaning

• Move waste to a collection container

Some functions may share a pump, while others need separate circuits to avoid contamination or provide independent control. Define the operating sequence, required direction, minimum and maximum flow, pressure or vacuum range, run duration, and number of cycles.

Select the Pump Technology

Diaphragm Liquid Pumps

Compact diaphragm liquid pumps may suit ink transfer, circulation, priming, or cleaning when their flow and pressure match the system. Ink contacts the diaphragm, chamber, valves, seals, and ports, so all wetted materials require compatibility review.

Particles, dried ink, and deposits can affect valve sealing. Flow pulsation and valve behavior should be tested at the actual viscosity and installed restriction.

Peristaltic Pumps

Peristaltic pumps isolate the fluid inside replaceable tubing. They are often considered for ink, solvent, cleaning-fluid, and waste transfer where a serviceable fluid path or reversible operation is useful.

Tube dimensions, speed, pressure, fluid chemistry, temperature, and wear affect delivery. Tubing is a consumable, and flow should be checked after replacement and over representative service life.

Gear and Other Pump Types

Gear, piston, piezoelectric, syringe, or other metering technologies may be appropriate when a system needs different pressure, smoothness, dose resolution, or fluid behavior. Their suitability depends on shear, particles, sealing, material compatibility, leakage, and cleaning requirements.

No pump type is universally best for all printing fluids or architectures.

Characterize the Ink and Cleaning Fluids

Provide the ink formulation or sufficient engineering properties to evaluate the fluid path. Important factors include:

• Water-based, solvent-based, oil-based, UV-curable, or other chemistry

• Viscosity across the operating temperature range

• Surface tension and wetting behavior

• Pigment or particle size and concentration

• Abrasiveness and settling tendency

• Volatility and evaporation rate

• Tendency to skin, cure, dry, or form deposits

• Electrical conductivity where relevant to the printing process

Include makeup solvent, flush solution, cleaning fluid, and mixed waste. A component compatible with the ink may not be compatible with the cleaner or long idle exposure.

Evaluate every wetted material under actual concentration, temperature, pressure, exposure time, and duty cycle. Look for swelling, softening, embrittlement, mass change, adsorption, permeation, extractables, and loss of mechanical recovery.

Determine Flow, Pressure, and Vacuum

Flow requirements depend on printhead demand, circulation strategy, startup sequence, purge volume, and desired fluid refresh rate. Oversizing can make low-flow control difficult, increase heat or aeration, and waste ink during purging. Undersizing may cause slow priming, unstable supply, or inadequate circulation.

Installed pressure loss comes from tubing, filters, dampers, valves, manifolds, printheads, nozzles, and elevation. Performance data measured at free flow does not represent this assembled operating point.

For systems using vacuum to control the printhead meniscus or recover fluid, specify the required vacuum together with flow. Leaks, filter loading, altitude, and pump pulsation can change the actual condition at the printhead.

Measure flow, pressure or vacuum, motor current, and temperature in the final circuit across all operating modes.

Control Pulsation and Pressure Stability

Pressure fluctuations can disturb sensitive printhead supply conditions, meniscus control, sensor readings, and jet formation. Reciprocating and roller-based pumps naturally produce some pulsation, although the amount depends on design, speed, tubing, valves, and system compliance.

Possible controls include:

• Selecting a pump with suitable displacement and operating speed

• Using a compatible pulsation damper or accumulator

• Adding a regulated intermediate reservoir

• Applying closed-loop pressure or vacuum control

• Separating high-flow priming from low-flow printing operation

• Using compliant tubing only where its movement is acceptable

Any damper or reservoir adds wetted area and dead volume. Verify material compatibility, cleanability, bubble retention, and response time.

Manage Pigments, Particles, and Filtration

Pigmented inks may settle during idle periods or accumulate in low-flow regions. Circulation can help keep material suspended, but excessive shear, heat, or aeration may alter fluid behavior. Validate the circulation rate and path with the actual ink.

Filters protect printheads and valves but add resistance that rises as they load. Define filter material, pore rating, area, clean pressure loss, end-of-service pressure loss, and replacement interval with the ink supplier and print-system requirements.

Test the pump with both a new filter and a representative loaded condition. A filter bypass, incorrect installation, or excessive pressure differential may create faults that are not visible from pump speed alone.

Avoid unnecessary dead legs, sharp internal transitions, and pockets where pigment or cured material can collect.

Prevent Air Ingestion and Bubble Problems

Air may enter during cartridge replacement, through loose inlet fittings, from an empty reservoir, or through fluid outgassing. Bubbles can interrupt pump priming, alter pressure, reduce delivered liquid, and disturb printhead operation.

Useful controls may include:

• Airtight inlet connections

• Tank pickup geometry that remains submerged

• Controlled priming and purge sequences

• Bubble traps or degassing components

• Liquid or bubble sensors

• Transparent inspection sections where appropriate

• Software timeouts for failed priming

Test startup after cartridge replacement, long idle periods, transport, and temperature changes. A water test may not reproduce the outgassing or wetting behavior of the production ink.

Design the Control Sequence

Printing systems may require several pump operating profiles rather than one fixed speed:

• Fast transfer to fill an intermediate reservoir

• Controlled priming to avoid excessive printhead pressure

• Stable low-flow circulation during printing

• Short purge pulses for air or contamination removal

• Reverse operation for drain or suck-back where supported

• Timed cleaning and flushing cycles

• Safe shutdown that prevents dripping or drying

Control may use fixed voltage, PWM, analog speed commands, stepper motion, or feedback from pressure, vacuum, flow, level, temperature, or motor current.

Timed operation alone does not ensure a fixed volume. Delivery may change with viscosity, pressure, voltage, temperature, air, filter loading, and wear. Calibrate or apply feedback where the process requires tighter control.

Protect Ink from Contamination

The pump and fluid path can introduce particles, fibers, lubricants, extractables, or previously used fluid. Cleanliness requirements should be defined for production, assembly, packaging, and service.

Consider:

• Pump and tubing manufacturing cleanliness

• Particle shedding from moving or compressed components

• Carryover between ink, makeup, and cleaning fluid

• Adsorption or color staining in the fluid path

• Dead volume that cannot be flushed effectively

• Incorrect reconnection during maintenance

Validate the complete path using the actual printing and analytical criteria. General chemical compatibility does not prove acceptable print quality or contamination performance.

Plan for Temperature and Idle Time

Ink viscosity and vapor pressure change with temperature. This can alter flow, pressure loss, pump load, priming, evaporation, and jet behavior. Heat from motors, electronics, and recirculation may also raise local fluid temperature inside a compact enclosure.

Test cold start, normal operation, hot enclosure conditions, and repeated duty cycles. Place temperature sensing where it represents the fluid condition relevant to control.

During idle periods, volatile fluids may evaporate and reactive inks may dry or cure. The system may require sealed valves, caps, controlled recirculation, flushing, or a defined shutdown sequence. Pump selection alone cannot compensate for poor idle-state fluid management.

Address Leakage, Solvent, and Waste Risks

Leaks can damage electronics, create print contamination, release vapors, or expose operators to ink and cleaning chemicals. Use secure fittings, suitable tubing retention, secondary containment, drainage paths, and leak detection according to the system risk.

Where fluids are flammable, volatile, reactive, or otherwise hazardous, the complete equipment design must address ventilation, ignition sources, electrical classification, emissions, storage, and applicable regulations. Do not assume that a pump is suitable for a hazardous environment without approved documentation for the specific model and installation.

Waste ink may contain mixed chemicals, pigment, debris, and cleaning fluid. Confirm that the waste pump, tubing, container, and disposal procedure are compatible with this mixture.

Build a Maintenance and Calibration Plan

Preventive maintenance should be based on representative tests with the actual ink, cleaner, temperature, pressure, speed, and duty cycle.

• Replace tubing, filters, valves, or other service parts before predictable failure.

• Inspect for leaks, deposits, swelling, discoloration, and loss of elasticity.

• Flush circuits that can dry, cure, or accumulate pigment.

• Verify pressure, vacuum, or flow after service.

• Record operating hours, cycles, faults, and replacement history.

• Recalibrate after changing critical fluid-path components.

Service access should allow parts to be replaced without introducing dirt, reversing flow direction, or connecting the wrong fluid line.

Validation Checklist

• Production ink, makeup fluid, cleaner, and mixed waste

• Minimum and maximum viscosity and temperature

• Pigment settling and representative particle loading

• Minimum and maximum flow

• Pressure and vacuum at the actual operating point

• Clean and loaded filters

• Priming after empty-line and cartridge-change conditions

• Bubbles, inlet leaks, and failed degassing

• Pulsation at the printhead or control sensor

• Startup, printing, circulation, purge, cleaning, and shutdown modes

• New and aged tubing, valves, diaphragms, and seals

• Long idle, restart, transport, and storage conditions

• Leakage, blockage, empty-reservoir, and power-loss faults

• Carryover, cleanliness, and flushing effectiveness

Common Selection Mistakes

• Selecting from water or free-flow data only

• Ignoring the cleaning fluid and mixed waste chemistry

• Treating all inks as having similar viscosity or particle behavior

• Sizing for maximum purge flow without considering stable printing operation

• Overlooking pulsation at the printhead

• Adding filtration without testing loaded pressure loss

• Assuming a visible liquid leak is required for air to enter the inlet

• Failing to evaluate long idle and restart conditions

• Using general compatibility data as proof of print performance

• Omitting safe containment and service access

Frequently Asked Questions

Which pump is used in an inkjet printer?

The choice depends on the printer architecture and pump function. Diaphragm, peristaltic, gear, and other pump types may be used for ink supply, circulation, priming, solvent dosing, vacuum, or waste transfer.

Can a peristaltic pump handle ink?

It may be suitable when the tubing is compatible and the required flow, pressure, pulsation, particle behavior, and service life are validated with the actual ink and cleaning fluids.

Why does ink flow decrease over time?

Filter loading, increasing viscosity, pigment deposits, dried ink, air leaks, valve wear, tube fatigue, or a falling supply voltage can reduce flow. Pressure, current, and flow measurements can help identify the cause.

How can pump pulsation be reduced?

Options include a more suitable pump operating point, a compatible damper, an intermediate reservoir, regulated pressure, or closed-loop control. Verify the response at the printhead rather than only near the pump.

Should the pump be tested with water first?

Water can support early checks, but final validation must use the production ink and cleaning fluids because viscosity, surface tension, volatility, particles, and compatibility can differ substantially.
