Reliable micro pump control depends on matching the pump electronics to the command interface, power supply, speed range, calibration, feedback, electromagnetic environment, thermal limits, fault handling, and OEM software architecture.

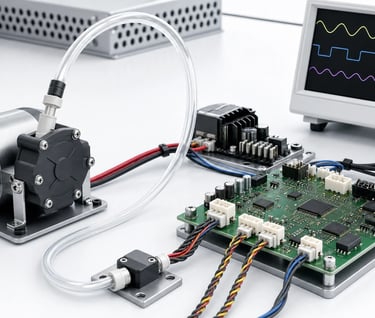

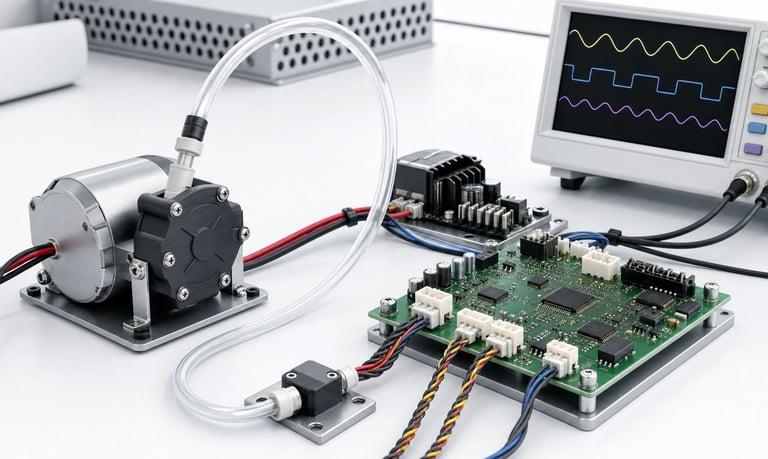

Micro Pump Control Methods: PWM, Analog, and Digital Communication

Micro pumps may be controlled by simply switching power, varying voltage, applying PWM, sending an analog command, issuing step pulses, or using a digital interface. The right method depends on the motor, driver electronics, required flow range, response time, accuracy, diagnostics, electrical environment, and software architecture.

Control input is not the same as delivered flow. Pressure, vacuum, viscosity, tubing, temperature, voltage, air, and wear can change pump output even when motor speed is stable. OEM designers should therefore define both the electrical command and the required fluid result.

Identify What Is Being Controlled

A micro pump can contain several control layers:

• A bare brushed DC motor

• A brushless motor with internal commutation

• A stepper motor driven by external electronics

• A pump with an integrated speed controller

• A pump module with sensors, firmware, and communication

The same-looking connector does not imply the same electrical interface. Before designing the controller, obtain the pinout, voltage limits, current requirements, logic levels, timing, supported commands, and fault behavior for the exact pump model.

Never apply PWM or an analog voltage to a pin unless its function and limits are documented.

Simple On-Off Control

The simplest approach switches the pump between stopped and a fixed operating condition. This can suit transfer, drainage, purge, or applications where a separate valve or sensor determines the endpoint.

Advantages include simple hardware and firmware. Limitations include fixed speed, startup current, abrupt pressure changes, noise, and limited adjustment.

Timed on-off control can approximate a dose under stable conditions, but it does not guarantee a fixed volume. Startup delay and residual flow become significant when run times are short.

Define safe behavior at power-up, brownout, watchdog reset, and communication loss so the pump does not start unexpectedly.

PWM Control

Pulse-width modulation changes the average command by switching between high and low states. PWM can be used in two different ways:

1. Switching motor power with a suitable driver

2. Sending a low-power PWM command to integrated pump electronics

These approaches are not interchangeable. Direct motor PWM requires a driver rated for startup and stall current, suitable switching protection, and an acceptable frequency. An integrated PWM input has its own logic-level, frequency, duty-cycle, polarity, and grounding requirements.

At low duty cycle, a motor may fail to start or run irregularly. PWM can also create audible tones, current ripple, heat, and electromagnetic interference. Validate the usable range under real pump load rather than assuming that duty cycle maps linearly to speed or flow.

Analog Speed Commands

Some pump controllers accept a voltage or current command representing requested speed. Analog control can be straightforward and avoids continuous high-current switching in the host controller.

Check:

• Input range and absolute limits

• Input impedance

• Ground reference and isolation

• Offset, dead band, and full-scale tolerance

• Filtering and response time

• Behavior when the input is disconnected

Noise, ground shift, and digital-to-analog converter error can affect the command. Use appropriate filtering, routing, and scaling, then verify the actual input at the pump connector.

An analog command usually controls motor behavior, not calibrated fluid flow.

Stepper Motor Control

Stepper-driven peristaltic or metering pumps can use step and direction commands to control shaft position and speed. This supports repeatable motion profiles, controlled acceleration, reverse operation, and defined step counts.

Fluid delivery per step still varies with tubing dimensions, back pressure, viscosity, temperature, occlusion, and wear. Missed steps, coupling slip, or stalls can also separate commanded motion from actual motion.

Select driver current, microstepping, acceleration, and holding behavior according to the specific motor and pump. Excess current can increase heat, while insufficient current can reduce torque margin.

Digital Communication

Some intelligent pump modules support a serial, fieldbus, or manufacturer-specific digital interface. Available functions may include start and stop, speed commands, direction, operating profiles, status, alarms, runtime, or configuration.

Digital communication can reduce analog uncertainty and improve diagnostics, but it adds protocol, firmware, and recovery requirements. Confirm:

• Physical layer and electrical levels

• Connector and pinout

• Command format and timing

• Addressing and bus topology

• Update rate and latency

• Error detection and retries

• Startup defaults and retained settings

• Behavior after communication loss

• Firmware and protocol version control

Do not assume support for a specific protocol unless it is documented for the exact pump variant.

Speed Feedback and Tachometer Signals

A speed or pulse output can confirm that the motor is rotating and support closed-loop speed control. It may help detect a disconnected motor, stall, or unexpected speed.

Check signal type, voltage, pull-up requirements, pulses per revolution, frequency range, and validity during startup or fault states.

Motor rotation does not prove that fluid is moving. An empty reservoir, inlet leak, worn peristaltic tube, failed diaphragm valve, blockage, or bubble can produce little or no delivery while speed appears normal.

Closed-Loop Fluid Control

When the process requires stable flow, dose, pressure, or vacuum, feedback can correct some changes that open-loop speed control cannot.

Possible feedback signals include:

• Flow

• Weight

• Pressure or vacuum

• Reservoir or chamber level

• Drop count

• Optical liquid detection

Select sensor range, resolution, response time, compatibility, pressure loss, and calibration for the application. The control loop must be tuned for pump delay, fluid compliance, pulsation, bubbles, and sensor filtering.

Closed-loop control cannot correct every mechanical fault. Add limits for maximum speed, run time, pressure, current, and accumulated error.

Design the Power Stage

Size the power supply, switching device, wiring, connectors, and protection for startup and worst-case load—not only nominal current. Measure current at the real pressure or vacuum, minimum supply voltage, maximum ambient temperature, and foreseeable blockage.

Depending on the pump and driver, the design may need reverse-polarity protection, flyback or transient suppression, overcurrent protection, current sensing, and controlled discharge.

Keep high-current motor paths away from sensitive analog and communication circuits. Use the grounding and decoupling approach recommended for the actual pump electronics.

Manage Electromagnetic Interference

Brush commutation, PWM edges, motor cables, and switching drivers can introduce conducted and radiated noise. This may disturb sensors, displays, wireless modules, or communication buses.

Evaluate cable routing, loop area, grounding, shielding, ferrites, filtering, switching frequency, and enclosure bonding. Component choices should be verified through system-level testing rather than copied without measurement.

Test across pump speed, pressure, cable length, supply condition, and operating modes. Startup, reversal, stall, and unplugging may create different disturbances from steady operation.

Create Operating Profiles

A pump often needs more than one fixed command:

• Soft start to reduce current and pressure shock

• Fast prime followed by normal flow

• Controlled acceleration to avoid missed steps

• Slow finish to reduce dripping

• Reverse or suck-back after dosing

• Intermittent circulation during standby

• Flush and drain sequences

Define timing and transitions from fluid behavior, not only motor response. Fast changes can compress bubbles, flex tubing, move valves, or create transient pressure.

Calibrate Command to Output

Build a calibration map using the actual medium, tubing, fittings, pressure, temperature, supply, and control method. Measure several commands and repeated cycles rather than assuming linearity.

Include:

• Minimum reliable start command

• Stable controllable range

• Maximum allowed command

• Forward and reverse behavior

• Startup and shutdown delivery

• New and aged tubing or valves

• Minimum and maximum pressure

• Temperature and viscosity range

Define when recalibration is required after service, fluid changes, or component replacement.

Plan Fault Handling

Software and hardware should address:

• Failed startup or stall

• Open or shorted motor circuit

• Overcurrent and overheating

• Empty source or failed priming

• Blocked outlet or loaded filter

• Inlet leak or broken tube

• Sensor failure

• Lost digital communication

• Controller reset or power interruption

Use multiple signals where practical. Speed, current, flow, pressure, liquid, and time together can distinguish faults better than a single threshold.

Define a safe state for every fault and specify whether automatic retry is allowed. Repeated retries can worsen a blockage, leak, dry-running condition, or thermal problem.

Validation Checklist

• Exact pump, motor, driver, and firmware variant

• Minimum and maximum supply voltage

• Startup, stall, and normal current

• Full command and speed range

• Actual flow, pressure, vacuum, or dose response

• Logic levels, timing, and disconnected-input behavior

• PWM frequency or analog-input tolerance

• Digital latency, errors, reset, and communication loss

• Sensor accuracy and loop stability

• New and aged fluid-path components

• Temperature and pressure range

• Reversal and rapid command changes

• EMI during startup, steady operation, stall, and shutdown

• Brownout, watchdog reset, unplugging, and power loss

• Every defined fault and recovery path

Common Control Mistakes

• Applying PWM without confirming the correct input

• Assuming duty cycle or speed is proportional to flow

• Sizing the driver from nominal current only

• Ignoring the pump's minimum reliable start command

• Treating motor rotation as proof of liquid delivery

• Omitting acceleration control for a stepper pump

• Leaving digital communication-loss behavior undefined

• Calibrating with water instead of the production medium

• Tuning feedback without pressure, bubbles, and pulsation

• Testing EMI only at one speed

Frequently Asked Questions

Can every DC micro pump be controlled with PWM?

No. PWM may be applied to motor power or to a dedicated command input, and the allowed method varies by pump. Follow documentation for the exact motor and controller.

Is pump flow proportional to PWM duty cycle?

Not necessarily. Motor behavior, startup threshold, pressure, viscosity, tubing, voltage, and wear can make the relationship nonlinear.

Is analog control more accurate than PWM?

Neither is inherently more accurate for fluid delivery. Electrical command quality, pump response, operating conditions, calibration, and feedback determine the result.

What does digital pump communication add?

It may provide commands, configuration, status, alarms, and diagnostics. Available functions and protocols depend on the specific pump module.

Does speed feedback eliminate the need for a flow sensor?

No. Speed confirms motion but cannot detect every empty, leaking, blocked, worn, or bubble-filled fluid path. Use fluid feedback when the process requires it.
