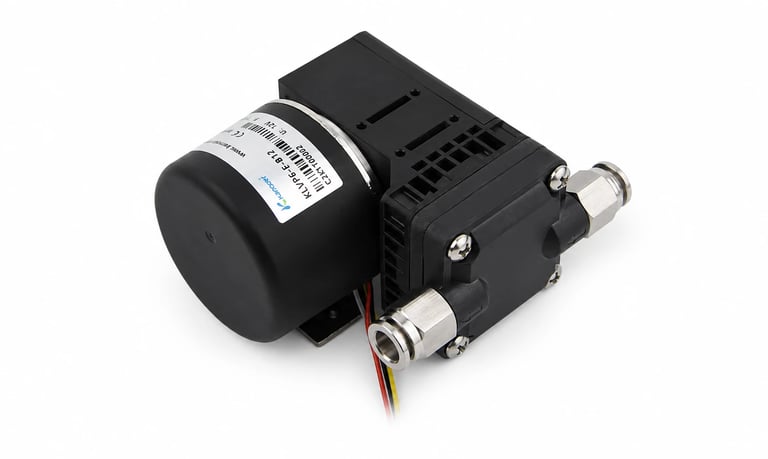

KLVP6 Micro Diaphragm Pump for Vacuum and Gas Transfer

The Kamoer KLVP6 is a compact micro diaphragm pump designed for vacuum generation, gas transfer, and selected gas-liquid applications. It is suitable for integration into environmental monitoring equipment, laboratory instruments, medical devices, and industrial vacuum systems.

Flexible Pump Configurations

The KLVP6 is available in several configurations:

• Single-head version for general gas transfer

• Twin-head series version for deeper vacuum

• Twin-head parallel version for higher gas flow

• Threaded and hose-barb connection options

The twin-head series model can reach a rated vacuum of approximately -0.095 MPa, while the parallel version provides a rated gas flow of at least 12 L/min.

Reliable Brushless Motor

The standard KLVP6 uses a 12 V or 24 V brushless DC motor. When used as a gas pump under specified test conditions, its documented service life can reach at least 10,000 hours.

The pump supports:

• PWM speed control

• 0–5 V analog control

• FG speed feedback

• Fixed-speed operation

These functions make it easier to integrate the pump into automated equipment.

Gas-Liquid Handling

Selected KLVP6 models can handle gas-liquid mixtures with a liquid proportion of up to 60%. This is useful in applications involving condensate, foam, droplets, or mixed waste.

The pump is not recommended for continuous water pumping. Medium compatibility should also be confirmed before use.

Typical Applications

The KLVP6 can be used in:

• Gas sampling and environmental monitoring

• Laboratory vacuum equipment

• Medical and diagnostic instruments

• Negative-pressure waste extraction

• Industrial vacuum suction systems

Main Materials

The main fluid-contact materials include:

• PPS pump head

• EPDM diaphragm

• EPDM valves and seals

Mineral oils and strongly corrosive media are not recommended. Chemical compatibility testing is advised for unfamiliar fluids.

Selecting the Right Model

Pump selection should consider:

• Required flow rate

• Operating vacuum

• Gas or gas-liquid medium

• Power supply

• Connection type

• Duty cycle

• Chemical compatibility

• Installation space

Actual flow varies with pressure, system resistance, temperature, and medium properties.

About Kamoer

Kamoer has focused on miniature pump and fluid-control technology since 2005, providing solutions for life science, laboratory, environmental, medical, and industrial equipment.

For detailed specifications, dimensional drawings, flow curves, and model-selection support, please visit the Kamoer official website or contact us to request the latest product information.
