Peristaltic pumps can move some particle-containing and suspended-solid fluids because the medium remains inside tubing without internal check valves, but suitability depends on particle geometry, concentration, settling, tube bore, occlusion, speed, pressure, abrasion, product damage, and cleaning.

Can Peristaltic Pumps Handle Particles or Suspended Solids?

Peristaltic pumps can handle some liquids containing particles, fibers, cells, crystals, or suspended solids. The fluid stays inside tubing, and the flow path can avoid the small internal check valves used by some other pump types.

That does not mean every solid passes safely. Particles must move through the reservoir pickup, tubing, fittings, pump head, sensors, valves, and nozzle. At the pump head, rollers repeatedly close the tube, which can trap, crush, deform, or abrade particles and tubing.

Suitability depends on the complete suspension and process. Particle size alone is not enough. Shape, hardness, concentration, density, settling, agglomeration, fluid viscosity, tube bore, occlusion, speed, pressure, and required product quality all need evaluation.

Define the Particles and Carrier Fluid

Create a representative material description before selecting the pump.

Document:

• Minimum, typical, and maximum particle size

• Particle-size distribution

• Shape, aspect ratio, and sharp edges

• Hardness and abrasiveness

• Particle or cell deformability

• Density relative to the carrier liquid

• Solids concentration and expected variation

• Settling, flotation, and agglomeration behavior

• Fibers, flakes, crystals, or irregular fragments

• Carrier-fluid viscosity and temperature

• Shear sensitivity and acceptable product change

• Whether particles can dissolve, swell, grow, or cure

A nominal average size can hide a small number of large particles or agglomerates that control blockage risk. Use realistic maximum and distribution data.

If the suspension changes during storage or mixing, define the worst condition that can reach the pump. A settled layer may have a much higher local concentration than the well-mixed bulk fluid.

Why Peristaltic Pumps May Suit Suspensions

The pumped medium contacts only the tube in the pump head. This isolated flow path can simplify material selection and replacement.

Potential benefits include:

• No internal pump chamber with narrow clearances

• No internal inlet and outlet check valves in the pump head

• Replaceable wetted tubing

• Reversible operation where the process allows it

• Self-priming behavior in suitable configurations

• Ability to pass some soft or irregular particles

The external system may still contain restrictive valves, filters, flow sensors, manifolds, and nozzles. These components can become the actual limit.

Peristaltic operation also creates full or near-full tube closure. A particle located at the occlusion point may be compressed between tube walls. The pump's valve-free path does not eliminate mechanical interaction with solids.

Relate Particle Size to the Smallest Passage

The tube inner diameter is important, but selection should be based on the smallest effective passage anywhere in the fluid path.

Check:

• Reservoir pickup opening

• Tube inner diameter

• Fitting and connector bore

• Valves and manifolds

• Filters and strainers

• Flow and pressure sensors

• Pulsation dampers

• Dispensing needle or nozzle

• Drain and cleaning paths

Particles may bridge or rotate through an opening differently depending on shape and flow. Long fibers and flat flakes can obstruct a passage even when one dimension is smaller than the bore.

Do not use a universal particle-to-tube diameter ratio without test evidence for the exact suspension. Concentration, agglomeration, deformability, pressure, and geometry change the result.

Select a bore with sufficient margin, then validate production particle variation and possible agglomerates.

Understand What Happens at Occlusion

As a roller closes the tube, fluid and particles are displaced toward the moving trapped volume. A particle caught between the collapsing walls may experience compression, shear, or impact.

Possible outcomes include:

• Soft particles deform and pass

• Brittle particles fracture

• Hard particles indent or abrade the tube

• Sharp particles cut or scratch the inner surface

• Fibers align, fold, or collect

• Cells or biological structures lose viability

• Agglomerates break apart

• The particle prevents complete occlusion

If a hard particle prevents the tube from closing fully, backflow, slip, pressure variation, or dose error may occur. Repeated hard-particle contact can accelerate local fatigue.

Observe both the delivered fluid and the used tube. Acceptable average flow does not prove that particle integrity or tubing life is acceptable.

Consider Particle Shape and Hardness

Spherical soft beads behave differently from sharp crystals, abrasive mineral particles, long fibers, food pieces, resin flakes, or living cells.

Sharp or hard particles may:

• Abrade the tube inner wall

• Create stress concentrations during compression

• Damage fittings and nozzles

• Generate smaller fragments

• Change sealing at the occlusion point

• Increase pressure loss as surfaces roughen or deposits form

Fibers can wrap, align, or bridge at contractions. Flakes may orient through a tube but block at a valve or nozzle.

Material hardness should be considered relative to tube and component surfaces. A chemically compatible tube may still have poor abrasion performance.

Use microscopy, particle analysis, mass balance, or product-specific quality tests when particle breakage or tube wear matters.

Evaluate Solids Concentration

Higher concentration increases the chance that multiple particles reach the roller and restrictions at the same time. It can also raise apparent viscosity, pressure loss, abrasion, and settling behavior.

A pump that handles occasional particles may not handle a dense slurry at the same tube size and speed.

Test:

• Minimum, typical, and maximum concentration

• Well-mixed and partially settled conditions

• Startup after long idle

• Concentration changes near the end of a batch

• Recirculated fluid after repeated passes

• Cleaner and product mixtures

Measure delivered solids concentration as well as liquid flow. A stable total volume can hide preferential settling or particle exclusion.

For sampling applications, verify that the sample remains representative of the source. Tube orientation, pickup location, and velocity may bias which particles enter the pump.

Manage Settling and Flotation

Particles denser than the carrier can settle in the reservoir, tubing, fittings, and low-flow regions. Low-density particles or foam may rise and avoid the pickup.

Settling risk depends on particle density and size, fluid viscosity, concentration, flow velocity, idle time, and line orientation.

Possible controls include:

• Controlled reservoir agitation

• A pickup location that samples the intended mixture

• Short, direct tubing

• Avoiding low points and dead legs

• Periodic validated recirculation

• A defined pre-mix or pre-prime sequence

• Maintaining a minimum transport velocity where appropriate

• Draining or flushing before long idle

Agitation must not damage the product, introduce bubbles, heat the fluid, or create an unrepresentative vortex near the pickup.

Test the longest expected idle period. A suspension that flows immediately after mixing may block or deliver a concentrated plug after overnight settling.

Control Agglomeration and Crystal Growth

Particles can join into agglomerates larger than the original distribution. Crystals may grow during cooling, evaporation, chemical reaction, or long storage.

Review:

• Mixing energy and order of addition

• Fluid age and storage temperature

• Evaporation from reservoirs or tubing

• Concentration changes during use

• Chemical compatibility and pH

• Freeze-thaw or thermal cycles

• Shear-induced aggregation or breakup

• Contact with cleaning residues

Use the largest credible agglomerate in blockage and damage testing. A filter can protect the pump or nozzle, but it may remove desired solids, change the sample, add pressure loss, or load quickly.

If screening is necessary, define the mesh or passage, available area, clean and loaded resistance, inspection, and replacement procedure.

Choose the Tube Inner Diameter

A larger bore generally provides more clearance and lower pressure loss, but it also changes displacement, dose resolution, retained volume, and pump-head compatibility.

When choosing bore, balance:

• Maximum particle and agglomerate dimensions

• Particle shape and orientation

• Solids concentration

• Required flow and dose

• Fluid viscosity

• Inlet and outlet pressure loss

• Prime and cleaning volume

• Pump-head tube specification

• Motor torque and occlusion

Do not increase only the external tubing size while leaving a smaller pump tube, fitting, sensor, or nozzle in the path.

Changing tube diameter requires new flow calibration and validation. The outside diameter, wall thickness, material, and pump-head fit must also be approved.

Select Tubing for Abrasion and Compression

Tubing must satisfy chemical compatibility, pump-head mechanics, and particle exposure. Material family names are not enough because formulations and constructions differ.

Evaluate:

• Inner-surface abrasion

• Cut and puncture resistance

• Flex-fatigue life

• Elastic recovery

• Hardness and wall thickness

• Particle adherence

• Chemical swelling or hardening

• Temperature response

• Extractables or particle shedding where relevant

A harder or thicker tube may resist one damage mode but increase roller force, motor current, heat, and particle compression. A softer tube may allow particles to embed temporarily but may wear or deform faster.

Use dynamic pump testing with the actual suspension. Static chemical immersion does not reproduce repeated particle contact and roller compression.

Inspect the tube at defined life intervals, especially the occlusion track and connection regions.

Choose Pump Speed Carefully

Speed changes particle transport, settling, tube refill, shear exposure, pulse frequency, and residence time.

At low speed:

• Particles may settle between pump events

• Flow may be more visibly intermittent

• A yield-stress or concentrated suspension may not enter consistently

• Tube refill time increases

At high speed:

• Tube refill may become incomplete

• Inlet vacuum and outlet pressure rise

• Shear and particle collision frequency may increase

• Abrasive exposure cycles accumulate faster

• Bubbles or cavitation-like behavior may appear

Find a validated operating range rather than assuming faster is safer for suspension. Measure liquid flow, solids concentration, inlet vacuum, outlet pressure, motor current, temperature, and product quality.

If the process uses different prime, dose, and cleaning speeds, validate each mode.

Minimize Fluid-Path Restrictions

Particles often block external components before they block the pump tube. Use full-bore, gradual passages where practical.

Review:

• Sudden contractions and expansions

• Sharp elbows

• Narrow barbed fittings

• Check and shutoff valves

• Flow meters and pressure ports

• Filters and strainers

• Mixing junctions

• Small dispensing needles

• Dead volume around seals

A peristaltic pump does not require internal check valves, but an OEM system may add them for siphon control or shutoff. Verify that each added component passes the suspension and cleans effectively.

Pressure sensors can use isolated or flush arrangements where appropriate, but their diaphragms and ports still require material and fouling evaluation.

Measure pressure before and after components in clean and realistically loaded states.

Consider Pulsation and Particle Distribution

Peristaltic flow is cyclic. Instantaneous velocity falls and rises as rollers move, which can influence settling and particle concentration in the outlet.

Short doses may capture an inconsistent number of particles even when liquid volume is repeatable. This can be a statistical sampling issue, a settling issue, or both.

For particle-count dosing, evaluate:

• Particles per individual dose

• Dose volume relative to particle concentration

• Mixing uniformity

• Rotor start position

• Complete and partial pump cycles

• Outlet tube orientation

• Nozzle retention

• Idle time between doses

A pulsation damper may smooth liquid flow but add a chamber where solids settle or collect. Flexible tubing compliance can also delay particles relative to the pump command.

Validate particle delivery at the actual outlet rather than assuming volume calibration guarantees solids delivery.

Evaluate Shear and Product Integrity

Peristaltic pumps are often described as gentle because the fluid avoids rotating impellers and internal valves. Actual product damage depends on tube closure, speed, pressure, particle type, and number of passes.

Evaluate before and after pumping:

• Particle-size distribution

• Cell viability

• Crystal breakage

• Fiber length

• Emulsion or suspension stability

• Agglomeration

• Temperature

• Product-specific function

Recirculation exposes material to repeated roller events. A fluid that tolerates one transfer may change after many passes.

Avoid using average flow as the only acceptance criterion. Define the product property that must be preserved and use a suitable measurement method.

Test Tube Wear and Particle Generation

Hard or abrasive solids can shorten tube life. The tube itself may also release wear particles during repeated compression.

Track:

• Flow and dose drift

• Motor current and pump-head temperature

• Tube surface and dimensions

• Leakage or cracks

• Particle count or contamination where relevant

• Product color or appearance

• Pressure and prime behavior

Distinguish original product particles, broken product particles, environmental contamination, and tube-generated material. Use controlled blank tests where appropriate.

Life depends on exact tube grade, pump head, occlusion, speed, pressure, temperature, chemistry, concentration, and particle abrasiveness. Establish replacement limits with representative tests rather than a universal time value.

If tube rupture has significant consequences, provide containment, detection, preventive replacement, or another risk control.

Plan Cleaning and Idle Management

Suspensions can leave solids in low points, tube texture, fittings, valves, dampers, sensors, and nozzles. Residue may dry, harden, react, or support contamination.

Define:

• Flush or cleaning fluid

• Temperature and concentration

• Flow and direction

• Contact time

• Agitation or pulsed flow

• Drainage and drying

• Maximum idle while filled

• Handling of mixed waste

• Verification method

Reverse pumping may help clear some sections but can move contamination toward the reservoir or create an unvalidated flow path.

Cleaning liquid is often less viscous than the product and may follow an easier path around settled material. Confirm removal by an appropriate residue, particle, conductivity, optical, mass, or product-specific method.

Make consumable tubing and filters accessible if replacement is part of the process.

Build a Representative Solids Test

Use the production suspension whenever practical. A substitute should reproduce relevant particle size distribution, shape, hardness, concentration, density, settling, viscosity, surface behavior, and abrasiveness.

Test:

• Minimum, typical, and maximum solids concentration

• Smallest and largest expected particles and agglomerates

• Freshly mixed and longest-idle material

• Minimum and maximum temperature

• Full speed and pressure range

• Minimum and maximum dose

• Final pickup, tubing, fittings, valves, sensors, and nozzle

• New and representative aged tubing

• Prime, normal operation, stop, restart, reverse, and cleaning

Record liquid flow, solids concentration, particle distribution, inlet vacuum, outlet pressure, motor current, temperature, blockage events, tube wear, and product-quality results.

Use multiple pump and tube samples. Inspect components after testing instead of relying only on uninterrupted flow.

Suspended-Solids Selection Checklist

• Particle-size distribution and largest agglomerate defined

• Shape, hardness, deformability, and abrasiveness documented

• Solids concentration and variation established

• Settling, flotation, and idle behavior tested

• Carrier-fluid viscosity and temperature range measured

• Smallest passage identified across the complete fluid path

• Tube inner diameter, wall, outside diameter, and pump-head fit approved

• Particle interaction at tube occlusion evaluated

• Tube material tested for abrasion, chemistry, and flex fatigue

• Pump speed range checked for settling and incomplete refill

• Inlet vacuum and outlet pressure measured

• Fittings, valves, filters, sensors, and nozzle tested for blockage

• Liquid dose and solids delivery both verified

• Product shear or particle damage measured

• Tube-generated particles and rupture risk evaluated

• Cleaning, drainage, idle, and restart procedures validated

• New, aged, and multiple-lot components included

• Replacement and inspection criteria documented

Common Solids-Handling Mistakes

• Selecting from average particle size only

• Ignoring fibers, flakes, and agglomerates

• Checking the tube bore but not smaller fittings or nozzles

• Assuming a valve-free pump head means a restriction-free system

• Ignoring particle compression at roller occlusion

• Testing a dilute sample instead of maximum concentration

• Pumping immediately after mixing but not after long settling

• Increasing speed without checking tube refill and abrasion

• Using a larger tube without updating calibration

• Measuring liquid volume but not delivered solids concentration

• Adding a damper where particles can collect

• Filtering out the material the process needs to deliver

• Using static compatibility data as proof of abrasion life

• Validating one pass when the process recirculates repeatedly

Frequently Asked Questions

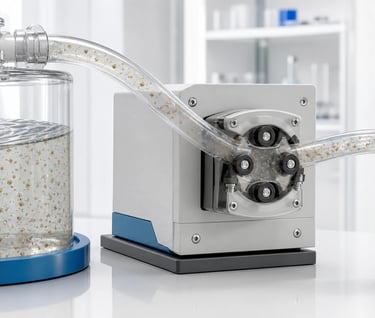

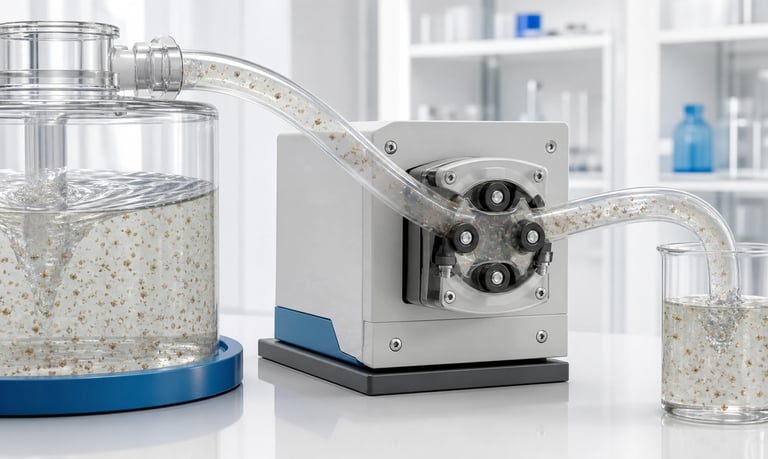

Can a peristaltic pump move solid particles?

It can move some particles suspended in liquid when the tube and every fluid-path passage provide enough clearance and the particles tolerate compression at the pump head.

What is the maximum particle size for a peristaltic pump?

There is no universal maximum. Suitability depends on tube bore, particle shape, hardness, concentration, agglomeration, pump-head geometry, speed, pressure, and required product integrity.

Will a peristaltic pump crush particles?

It may. Particles caught where the roller closes the tube can deform, fracture, or damage the tube. Test the actual material and inspect particle distribution after pumping.

Are peristaltic pumps suitable for abrasive slurry?

They may be suitable for some slurries because the replaceable tube is the wetted pump element, but abrasion can shorten tube life. Validate the exact tube, concentration, speed, pressure, and replacement plan.

How can settling be prevented in the pump line?

Use controlled mixing, appropriate pickup placement, short direct routing, suitable velocity, limited idle time, and a validated flush or recirculation sequence without damaging the product or adding bubbles.

Does volume calibration guarantee the correct solids dose?

No. Liquid volume may be repeatable while particle concentration varies because of settling, agglomeration, sampling statistics, or retention in the fluid path.

Kamoer Suspended-Solids Pump Support

Kamoer can help evaluate tube size, pump-head fit, speed, pressure, suspension properties, particle passage, product integrity, tubing wear, cleaning, and representative testing for particle-containing peristaltic pump applications.

Related Stories

Kamoer Fluid Tech (Shanghai) Co., Ltd.

pump@kamoer.com
